Sponsoring-Portal Handbook

1. What’s New

Please refer to the upgrade instructions if you want to upgrade your onway director (Sponsoring Portal) installation to the latest version. The upgrade instructions can be found here.

onway director 5.7

We have added a new widget to the customer homepage that shows all systems that are currently online on a map. Furthermore, the onway router integration has been refined in several places.

The what’s new archive can be found here.

2. Configuration

Only users with the role Admin, such as the default user sp-admin are allowed to configure the Sponsoring Portal.

2.1. Certificates

All certificates are managed through the web console. If you use certificates from your internal PKI that are not globally trusted to secure your MPP or a user directory such as LDAP, you must import these certificates through the web console.

In order to verify a remote peer the Sponsoring Portal has to be able to verify the remote host’s certificate. Either you have the certificate already or you have to fetch it from the server.

Fetch certificate from remote host

remote_host=ldap.exmaple.com
remote_port=636
keytool -printcert -sslserver ${remote_host}:${remote_port} -rfc > ${remote_host}.crt

2.2. Organizational Unit

An organizational unit (shortened to org unit) is defined with a name and an optional comment. Multiple organizational units can be structured as parent-child relations.

2.2.1. Configure Organizational Unit

The behavior of an org unit (and its children) is configured through its Permissions & Settings view.

Permissions & Settings

New permissions & settings of an org unit are applied to a particular Group. Such a group must be configured beforehand. The Org Unit - Group relation owns the permissions & settings.

Permissions & settings are applied to these general types of entities:

Guest User (MPP user)
MPP Device
MPP Voucher

Permissions are read, create, edit and delete, while settings are entity type specific. Both permissons & settings are inherited within org units.

Any configuration issue is shown either as an error or as a warning. Errors indicate a configuration issue which must be corrected by the administrator of the Sponsoring Portal.

The optional field Delete After relates to an Input Template field. If it is defined here, make sure is is visible or enabled on the input template, and vice versa.

Guest User

Guest user specific settings are applied here.

User groups are retrieved from MPP MPP Configuration. These settings need to be configured, and are used to create a guest user.

MPP Device

MPP device specific settings are applied here.

User groups are retrieved from MPP MPP Configuration. These settings need to be configured, and are used to create a MPP device.

MPP Voucher

MPP voucher specific settings are applied here.

Voucher groups are retrieved from MPP MPP Configuration. These settings need to be configured, and are used to create a MPP voucher.

2.3. Group

A group is a container. It is used for Organizational Unit - Group relation, and to limit My Device approval.

Any synchronized user of a User Directory can be assigned to a group. This helps to easily identify remote users on the Sponsoring Portal.

A group that is used by the onway director for reporting permissions can’t be deleted.

2.3.1. Configure Group

A group has a unique name, an optional comment, and a max. my devices field. It specifies how much devices a user can approve.

2.4. User Account

User accounts are either created locally, or synchronized from a user directory.

If a user account belongs to the Local Directory, it can be assigned to zero, one or more Groups.

If a user account is synchronized from a LDAP Directory, the user is assigned to a standard group. The standard group is configured in the User Directory general administration.

2.5. User Directory

Two types of user directories can be configured:

Local Database
LDAP Directory

You can manage the users locally on the Sponsoring Portal or connect it to several LDAP directories including Microsoft’s Active Directory. The user chooses the directory on the login page.

2.5.1. LDAP Directory

Four sections of a LDAP directory can be configured:

General
Connection
User account LDAP attributes
Group LDAP attributes

General

A remote user is assigned to a local Standard Group, if it is synchronized. A standard group is like any other Group, with this exception: a synchronized User Account can not unmap itself from the standard group. The LDAP directory is the authority of this user account, and the standard group defines the mapping to the Sponsoring Portal.

A standard group can be remapped to another group, nevertheless.

To remove all users from a directory on the Sponsoring Portal, the standard group can be set to (None).

Connection

This section defines basic connection settings and some synchronization related configuration options.

The LDAP time limit in seconds defines how long one request can go. Synchronization of a large directory uses multiple requests.

The LDAP count limit of 0 means that all entries are synchronized. This should be the default. For a general connection test run, the value can be set to i.e. 10, to limit the amount of transferred entries.

The LDAP sync intervall in minutes defines how often the whole(!) data is transferred from the directory to the Sponsoring Portal for synchronization.

The LDAP page size specifies the batch size of one result, which is transferred from the directory to the Sponsoring Portal.

Active Directory Attribute Mapping

Table 1. User account LDAP attributes
Field	Attribute
User account ID attribute	`objectSid`
Display name attribute	`displayName`
First name attribute	`givenName`
Last name attribute	`name`
Username attribute	`sAMAccountName` or `userPrincipalName`
User group attribute	`memberOf`
Email attribute	`mail`
Phone number attribute	`telephoneNumber`
User object class	`person`

Table 2. Group LDAP attributes
Field	Attribute
Unique group id attribute	`objectGUID`
Display name attribute	`name`
Group description attribute	`description`
Group member attribute	`member`
Group member of attribute	`memberOf`
Group object class	`group`

Synchronization

Sponsoring Portal synchronization goes one way, from remote to local. The remote directory is the authority of the data, and the Sponsoring Portal consumes the data.

LDAP directory synchronization is done on configuration Save, is triggered automatically, or can be activated by pressing the Synchronize button.

Directory Service Groups

All available Directory Service Groups are shown here. It is possible to assign a directory service group to one or more local Groups.

A remote group is assigned to a Local Group, if it is synchronized. All users within the remote group are assigned to this local group. Like with the standard group, a synchronized User Account can not unmap itself from such a group. The LDAP directory is the authority, and the local group defines the mapping to the Sponsoring Portal.

Local groups are optional. If none is chosen, just the standard group is used.

2.6. MPP Configuration

The MPP configuration is required to connect the Sponsoring Portal with the MPP.

2.6.1. Connection

Configure the MPP host and port and preferably use HTTPS, if configured. Set credentials, i.e. mpp-admin with the corresponding password.

The connection timeout defines how long the Sponsoring Portal tries to establish a connection to the MPP. The sync interval specifies the interval in which the Sponsoring Portal fetches data from the MPP.

2.6.2. Guest User Template Settings

The Sponsoring Portal lets you display or download the data of a created Guest User.

The template settings define how the data shall be rendered. The data is shown as PDF or plain TXT. Please see the supported fields information box for all available fields.

The file download time limit defines after how many minutes the template data shall be deleted. It must be deleted as it contains sensitive information.

2.6.3. MPP Voucher Template Settings

The Sponsoring Portal lets you display or download the data of a created MPP Voucher.

The template settings define how the data shall be rendered. The data is shown as PDF or plain TXT. Please see the supported fields information box for all available fields.

2.7. Custom Fields

Custom fields can be defined to enhance Input Templates with additional input fields.

A custom field consists of a unique name and has a type. Based on the type, additional fields such as values or regular expression can be defined.

The following types are available:

List: defines a list with values; a value can be selected
Text: any text is possible, supports a regular expression to validate the text
Yes/No: offers a simple yes-or-no checkbox

An ID is assigned to a custom field, if it is added to the Sponsoring Portal. The ID can be used to identify a custom field from the MPP configuration, for TXT or PDF export.

2.8. Input Template

An input template can be defined to configure which fields are visible on an input form. In addition, static or generated values can be assigned to an input field of a template. The purpose is to simplify and automate user input. The user requires less time to fill out the form. Some input templates can be enhanced with Custom Fields or support a factory.

Input templates exist for the following forms:

New Guest User (supports custom fields)
New MPP Device (supports custom fields)
New MPP Voucher (supports factory)

2.8.1. Configure Input Template

An input template has a unique name, an optional comment, and a priority. It is referenced from the Permissions & Settings of an Organizational Unit.

The input template with the highest permission is presented to a Guest User, if he is member of multiple groups.

A collection of field settings define how the input template looks and behaves. Each field is defined with a field name, if it is visible, if a value provider is enabled, and with a default value.

Table 3. Field settings combinations
Visible	Enabled	Value	Result
True	True	A value must be configured	Field is visible and has read-only value
True	False	Value is ignored	Field is visible and uses user-input
False	True	A value must be configured	Field is invisible and has value
False	False	No value	This combination is not allowed for mandatory fields!

Two types of value providers do exist:

Static value. A default value is defined in the input template and is applied to the form; example: Valid For 1440 minutes, Enabled: true
Generated value. A value generator produces a value for the form; example: Valid From First Login, Voucher Code: 5313

Some value providers, such as the username-, password- or vouchercode-provider require additional configuration.

The MPP Device field MAC Addresses can’t be modified. It is shown for completeness.

The field Delete After (not available in MPP Voucher) needs to be visible or enabled if it is configured within Permissions & Settings. Adding this field to an input template without setting the permissions & settings doesn’t have any effect.

Guest User with Predefined Password (Voucher Code)

The password provider can be configured to generate guest user accounts with predefined passwords. This is a special case. The scenario can be used for a simplified use case where the user only has to enter a voucher code on the login page.

To achieve this goal, the username and password fields are swapped on the login page. The username is treated as a voucher code.

Input Template Configuration

Set the Password field to Enabled
Set the Password Length field to 0 (zero), ignore the password length policy
Define your fixed password (top s3cr3t) in the Password Characters field, pay attention to the minimum length of the password length policy

Login Form

The user enters his username in a Voucher Code: field
The password field is hidden and contains the predefined password characters of the input template configuration

Custom Fields

Some input templates can be extended with Custom Fields. A custom field of an input template supports the same configuration options. An additional optional field can be configured. It specifies if the field requires an input value or not.

Factory

The MPP voucher input template can be configured to create multiple vouchers instead of just one. An optional field Count must be configured to do so. It behaves like any other input template field and supports the visible and enable flags. The code field must be enabled and configured, as each MPP voucher code must be unique.

The factory input template can be added to any Organizational Unit.

2.9. FTP Servers

The Sponsoring Portal uses one or multiple FTP servers to download CSV files for import tasks.

2.10. Import Tasks

Import tasks are used to automatically download files from an FTP server and create or update entities via CSV Import. They can be created for Guest Users and MPP Devices using the CSV dropdown button on the Organizational Unit view.

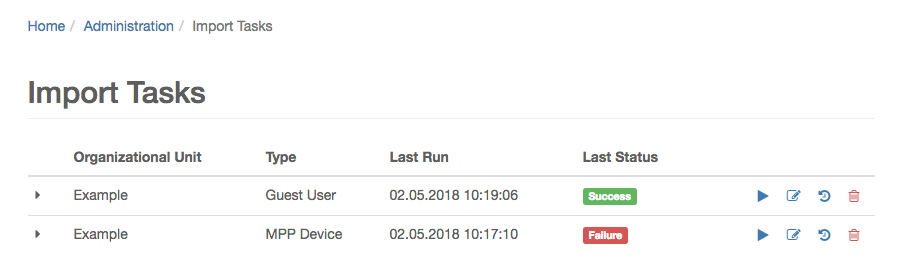

Existing import tasks can be managed in the Administration / Import Tasks view.

The Import task history view shows the status of the executions of a task. The number of task executions that are stored can be configured.

2.10.1. Configuration

An import task runs with the permissions and settings of the user that last edited it. If you want to use a specific input template you can create a new user and change the settings accordingly.

An import task is configured in the following 4 steps:

Step 1: General Settings

Source

The FTP server used to download files. At least one server must be configured in order to create an import task.

Import Strategy

Full: Creates or updates all entities that are in the downloaded file and deletes all existing entities that are not.
Cumulative: Creates or updates all entities that are in the downloaded file. No entities are deleted.

Step 2: Information Settings

Email Notification

E-mail notifications can be sent after a task execution. The SMTP server settings must be defined in the application.properties file.

One of the following notification types can be used:

Always: A notification is sent after each task execution.
Failure: A notification is sent after a failed task execution.
Success: A notification is sent after a successful task execution.
Never: No notifications are sent.

Step 3: File Settings

File Retention Policy

None: No action is performed.
Delete File: The downloaded file will be deleted from the FTP server after a successful task execution.

File Pattern

The file pattern is a regular expression that defines which file should be downloaded.

If no pattern is defined, or if multiple files match the pattern, the newest file (ordered by last modified) will be used.

File Selection

In order to reach the next step, a CSV file is required. Use the load button to get a list of all files that match the current settings. The file highlighted in green will be used for the field mapping in step 4.

Step 4: Field Mapping

The CSV field mapping is configured in the same way as for a manual CSV import. Please refer to CSV Field Mapping for more information.

3. Administration

3.1. Guest User

Manage user accounts on the MPP, in order to grant network access to guests.

A guest user is related to an Organizational Unit. Given the user has the required Permissions & Settings, three options to manage guest users are provided here.

To fill out the input form

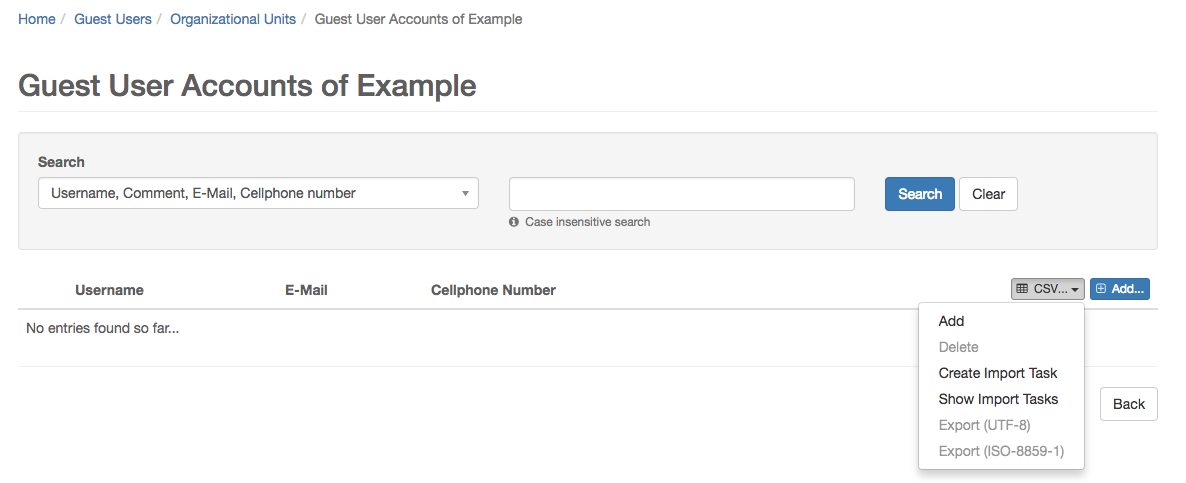

To use the CSV Import / Export tool
To use the Import Task tool

The first option is interactive and can add / delete one device, while the second option offers bulk actions.

3.2. MPP Device

Manage user devices on the MPP, in order to grant headless or special devices network access.

A MPP device is related to an Organizational Unit. Given the user has the required Permissions & Settings, three options to manage MPP devices are provided here.

To fill out the input form
To use the CSV Import / Export tool
To use the Import Task tool

The first option is interactive and can add / delete one device, while the second option offers bulk actions.

3.3. MPP Voucher

Manage vouchers on the MPP, in order to grant network access to guests, by using voucher codes. The voucher code must be unique.

A MPP voucher is related to an Organizational Unit. Given the user has the required Permissions & Settings, two options to manage MPP vouchers are provided here.

To fill out the input form
To create multiple vouchers with a factory

3.3.1. MPP Voucher Factory

To generate multiple vouchers at once, the administrator must configure an MPP Voucher Input Template. An additional field Count defines the number of vouchers to be created. The generated vouchers can be downloaded as a CSV file afterwards.

If you import the CSV file in a spreadsheet application, please define the code column type as Text (not as type Standard), if your code can contain 0, to prevent that 0123 is transformed to 123.

3.4. CSV Import / Export

The tool can add or delete a number of entities (Guest Users or MPP Devices) to the Sponsoring Portal at once. The input data is a comma (,) or semicolon (;) separated file, encoded with UTF-8 or ISO-8859-1, also called Latin 1. Former Microsoft Excel versions use this encoding, typically, when exporting to a CSV file.

CSV files can be imported manually, or by an import task. The import task allows to update entities.

3.4.1. Manual Import

Importing a CSV file is done in three steps:

Uploading the file by choosing the file, encoding and separator
Mapping the column fields
Executing the import

Click on the Download sample file link to get a template which contains the required header fields before uploading.

CSV Field Mapping

First of all, it must be defined on which row the import shall start.

Then, each column of the CSV file must be mapped to a field name of the Sponsoring Portal. This is done in the Column-Field Name Mapping table. If a field is provided by an Input Template, it cannot be mapped. The sponsoring portal tries to guess the correct mapping by reading the first line of the file.

The first few lines of the uploaded file are shown in a Preview below, to support the mapping decision.

It is not needed to map all fields to delete entities. An information box shows which fields are required.

Import

If the mapping is set, the uploaded file is imported by clicking Add or Delete. Based on the number of lines that are imported, it might take some time. The Sponsoring Portal connects to remote MPP systems and does several validation checks to assure data integrity over all involved systems.

A success message is shown at the end, if no errors are detected.

Updated entries are just counted for MPP Devices with multiple MAC addresses. A device is updated if some (not all) MAC addresses were deleted.

Errors

If errors occur, a Summary page with Failed Lines appears. The summary shows deleted, updated and failed entries. Failed lines can be downloaded (as CSV), for correction. The error causes are added in a separate column. The whole import process can start over with the corrected CSV file.

3.4.2. Automatic import

A CSV import can be automated using an import Task. Please refer to Section 2.10, “Import Tasks” for more information.

3.4.3. Export

The entities of an organizational unit can be exported as CSV. The encoding is chosen, while the field separator (typically comma or semicolon) is determined automatically by the underlying locale. A header line is added to show the field names.

4. Installation

4.1. System requirements

Table 4. System requirements
Component	Minimum	Recommended
Processor	Dual core with 2 GHz or faster	Quad core with 2 GHz or faster
RAM	8 GB	12 GB
Storage	60 GB	>= 240 GB

4.2. Product Dependency

The onway director (Sponsoring Portal) requires at least the following mpp and / or macman product versions.

Table 5. Product dependency
onway director	mpp Version	macman Version	customer entry point Version
5.7.0	>= 8.9.0	>= 3.8.0	>= 2.0.0

4.3. Install

To install the Sponsoring Portal, we need either a bare metal server or a virtual machine that meets the requirements as specified above.

Download the latest onway ISO from https://packages.onway.ch/iso/.

After you have started from the disk image a similar GRUB screen will show up:

Figure 1. GRUB boot screen

Select Install Sponsoring-Portal 5.7.0 and press return. As next, the setup wizard pops up. Follow the instructions. Next, to the wizard, the Sponsoring Portal gets installed on the local disk. This may take some minutes. To finish the installation the server reboots once, and a yellow Linux prompt appears.

4.3.1. VMware Tools

If you are running the Sponsoring Portal in a VMware virtual environment, we recommend that you install the open VM tools.

Install Open VM Tools

apt update
apt install open-vm-tools

4.3.2. Configure Reverse Proxy (Nginx)

With the default configuration the reverse proxy uses the self-signed certificates of the base system. In order to use your own certificates you have to change the host configuration.

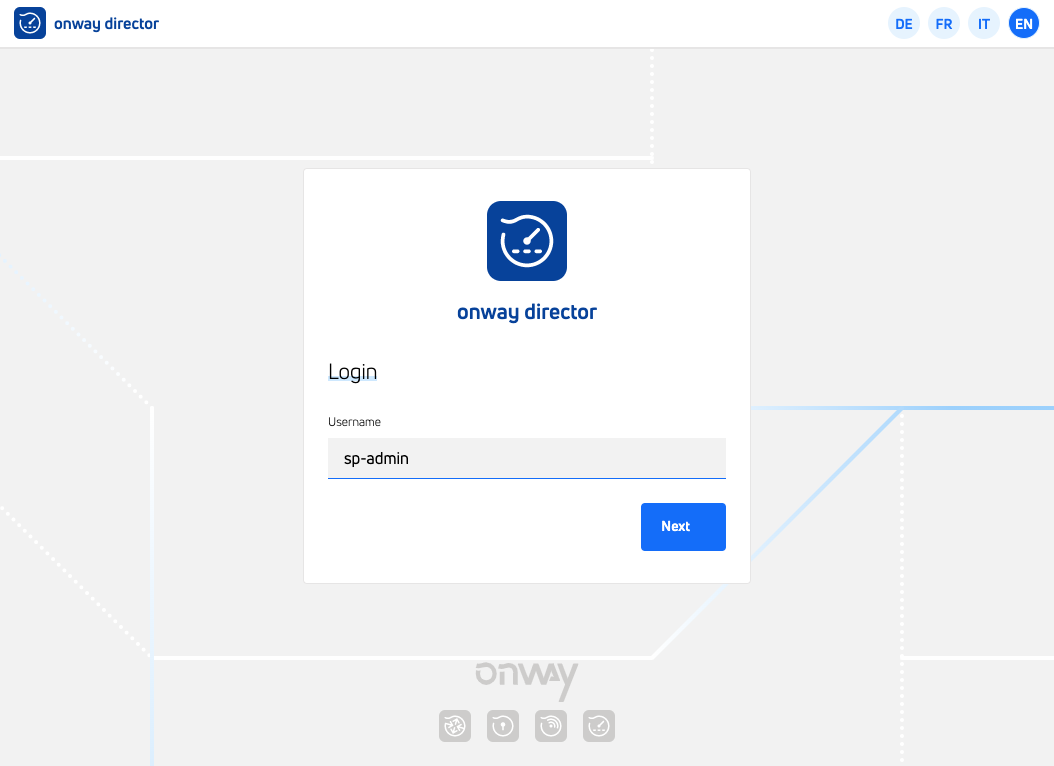

4.4. Access the Web Console

If nothing went wrong, you should now be able to access the web console by https://<server_name>/. Use sp-admin as username and password to login as administrator. This user has been created automatically during the package’s installation process.

5. Upgrade

Perform backup before upgrade! It is recommended to backup the database before upgrading. You can do so, by either taking a snapshot of the VM or by performing a pg_dumpall. You can find more information about pg_dumpall on the following page: https://www.postgresql.org/docs/current/app-pg-dumpall.html. If you want to continue without creating a backup, please be aware that you are doing it at your own risk.

5.1. onway director (Former Sponsoring Portal) < 5.0.0

The nginx configuration is now managed by the system and no longer needs to be edited manually. After the upgrade, the server will use the self-signed snake-oil certificate until the correct certificate is configured on the host configuration page.

onway director 5.0.0 is the first version that runs on Ubuntu 22.04 (Jammy Jellyfish).

5.1.1. Upgrade all packages on Ubuntu 20.04

apt update (1)
apt upgrade (2)
apt autoremove --purge (3)

1	Update the local package information database
2	Install all available upgrades of all packages currently installed on the onway director
3	Remove packages that are no longer needed by the system

5.1.2. Release Upgrade

Update sources.list file to new resources

sed -i 's/focal/jammy/g' /etc/apt/sources.list.d/packages-onway.list

Do not call apt update after you changed the sources.list until the release upgrade is finished.

Perform Ubuntu release upgrade from 20.04 to 22.04

systemctl stop sponsoring-portal.service (1)
do-release-upgrade (2)
apt purge sponsoring-portal-console bastard-remote-client (3)
apt autoremove --purge (4)
shutdown -r now (5)

1	Shutdown onway director and Sponsoring Portal before upgrade
2	Perform the release upgrade from Ubuntu 20.04 to 22.04. This will take some time
3	Remove previously used packages
4	Remove packages that were automatically installed to satisfy dependencies for other packages and are now no longer needed
5	Restart system

5.2. onway director (Former Sponsoring Portal) < 4.0.0

onway director 4.0.0 is the first version that runs on Ubuntu 20.04 (Focal).

5.2.1. Upgrade all packages on Ubuntu 18.04

apt update (1)
apt upgrade (2)
apt autoremove --purge (3)
dpkg-reconfigure grub-pc (4)

1	Update the local package information database
2	Install all available upgrades of all packages currently installed on the onway director
3	Remove packages that are no longer needed by the system
4	Configure GRUB installation

5.2.2. Release Upgrade

Update sources.list file to new resources

sed -i 's/bionic/focal/g' /etc/apt/sources.list.d/packages-onway.list

Do not call apt update after you changed the sources.list until the release upgrade is finished.

Perform Ubuntu release upgrade from 18.04 to 20.04

systemctl stop sponsoring-portal.service (1)
do-release-upgrade (2)
apt purge postgresql-12 postgresql-client-12 (3)
apt autoremove --purge (4)
shutdown -r now (5)

1	Shutdown Sponsoring Portal before upgrade
2	Perform the release upgrade from Ubuntu 18.04 to 20.04. This will take some time
3	Remove previously used packages
4	Remove packages that were automatically installed to satisfy dependencies for other packages and are now no longer needed
5	Restart system

5.3. Sponsoring Portal ⇐ 3.3.0

From onway director (Sponsoring Portal) 3.4 upwards the MPP 7.5 or higher is required. Otherwise, the communication between these two will not work!

5.4. Sponsoring Portal from 3.0.0 to 3.1.0

With the release 3.1.0 we update the PostgreSQL database from version 10 to 12. For this purpose a complete export of the current database has to be done and the whole database has to be imported into PostgreSQL 12. Depending on your hardware configuration and the size of your database, the upgrade may take up to 2 hours. Usually the upgrade process does not take longer than 30 minutes.

Sponsoring Portal 3.1.0 introduces a new package: sponsoring-portal-console.

apt update (1)
apt dist-upgrade (2)
apt purge postgresql-10 postgresql-client-10 (3)
apt autoremove --purge (4)

1	Update the local package information database
2	Install all available upgrades of all packages and handle changing dependencies
3	Remove PostgreSQL 10 packages and configuration
4	Remove packages that are no longer needed by the system

We made changes to the NGINX configuration file /etc/nginx/sites-available/sponsoring-portal. If you kept your version of the file during the upgrade process, please ensure the configuration looks like the corresponding template:

server {
    listen                          80 default_server;
    return                          301 https://$host$request_uri;
}

server {
    listen                          443 ssl http2 default_server;

    ssl_certificate                 /etc/ssl/certs/ssl-cert-snakeoil.pem;
    ssl_certificate_key             /etc/ssl/private/ssl-cert-snakeoil.key;

    ssl_session_cache               shared:ssl-session-cache:10m;
    ssl_session_timeout             10m;

    include                         snippets/sponsoring-portal-console.conf;
    include                         snippets/onway-director-console.conf;

    location / {
        include                     snippets/sponsoring-portal.conf;
        proxy_read_timeout          3m;
    }

    location ~* /download/aup/(.*) {
        root                        /var/lib/sponsoring-portal/aup;
        try_files                   /$1 =404;
    }

    location ~* /internal/console-events {
        include                     snippets/sponsoring-portal.conf;
        include                     snippets/sponsoring-portal-console-events.conf;
    }
}

5.5. Sponsoring Portal < 3.0.0

Sponsoring Portal 3.0.0 is the first version that runs on Ubuntu 18.04 (Bionic).

5.5.1. Upgrade all packages on Ubuntu 16.04

apt update (1)
apt upgrade (2)
apt autoremove --purge (3)

1	Update the local package information database
2	Install all available upgrades of all packages currently installed on the Sponsoring-Portal
3	Remove packages that are no longer needed by the system

5.5.2. Release Upgrade

Perform backup before upgrade

It is recommended to backup the database before upgrading. You can do so, by either taking a snapshot of the VM or by performing a pg_dumpall. You can find more information about pg_dumpall on the following page: https://www.postgresql.org/docs/current/app-pg-dumpall.html. If you want to continue without creating a backup, please be aware that you are doing it at your own risk.

Update sources.list file to new resources

cat <<EOF >>/etc/apt/auth.conf
machine packages.onway.ch/system login system password &lt;<password>&gt;
machine packages.onway.ch/onway/stable login onway password &lt;<password>&gt;
EOF
chmod 600 /etc/apt/auth.conf

cat <<EOF >/etc/apt/sources.list
deb https://packages.onway.ch/system/ bionic main
deb https://packages.onway.ch/onway/stable/ bionic main
EOF

Do not call apt update after you changed the sources.list until the release upgrade is finished.

Perform Ubuntu release upgrade from 16.04 to 18.04

do-release-upgrade (1)
  Continue running under SSH? → Yes
  No valid mirror server found. Do you want to rewrite your 'sources.list' file anyway? → Yes
  Do you want to start the upgrade? → Yes
  Configuring libc6: Do you want to upgrade glibc now? → Yes
  Configure grub-pc: New version of /etc/default/grub is available, but the installed version
  has been changed. How do you wish to proceed? -> install package maintainer's version
  Configuration file /etc/nginx/sites-available/sponsoring-portal → No
  Remove obsolete packages? → Yes
  System restart required. Do you want to restart? → Yes

1	Perform the release upgrade from Ubuntu 16.04 to 18.04

Cleanup new system and finish release upgrade
```
apt purge postgresql postgresql-9.5 postgresql-contrib-9.5 postgresql-client-9.5 (1)
apt autoremove --purge (2)
```
1 Remove previously used Postgres packages

2 Remove packages that were automatically installed to satisfy dependencies for other packages and are now no longer needed
Update the NGINX sites-available file
```
cd /etc/nginx/sites-available/ (1)
vi sponsoring-portal (2)
systemctl restart nginx (3)
```
1 Go to the source folder

2 Change the entry client_max_body_size from 20M to 80M

3 Restart NGINX

6. onway director

The onway director is a business application of the onway provisioning and monitoring platform. It provides a reactive user interface and is configured through the Administration section. The GUI runs on any device such as desktop, tablet or mobile phone.

The onway director GUI follows a customer-centric approach. It is able to manage a single customer or multiple customers. The customer selection is done on the entry page, if more than one customer is configured.

Every enterprise application needs access permissions. So does onway director. It always supports the configuration of permissions where they are needed. The administrator keeps the focus while configuring the application in terms of permissions.

6.1. User Menu

The user menu is on top right and can always be accessed.

6.1.1. Settings

Settings are configured by clicking on top right. They allow to customize such things as user language and date or number format.

English is used as a fallback language for untranslated content.

You can configure your session timeout for the application. This determines how long you stay logged in.

You can define the CSV separator, if you don’t want to use the default, which is derived from your language.

6.1.2. Change Password

Users of onway director change their password here.

6.1.3. About

Information about software version

6.1.4. Logout

Logout from onway director.

6.2. Administration

Only users with the role Admin, such as the default user sp-admin are allowed to administer the onway director.

The configuration is split into a general and a customer specific part. The general part defines the setup of the whole system, and how it communicates with other components such as MPP, macman or onway controller.

The customer part contains all required settings for a particular customer.

Let’s start with the customer.

6.2.1. Customers

onway director customers must be added manually.

The customer key must match with the MPP for identification, so check twice.

A customer has one or more groups. Groups are managed in the Sponsoring Portal Administration → Groups.

Customer permissions are derived from such groups. Choose as many groups as you need. Upcoming parts of the customer configuration will have access exactly to these groups. A permission is granted to all members of a group.

The following list shows examples of where permissions are required:

Access to a reporting category is not possible without customer permissions
Tags have an assign permission
Network Access Groups have permissions
Device Groups have permissions
My Device has a permission
Other places with permissions…

As you can see, these permissions are a central part of the customer configuration.

A group can’t be deleted in the Sponsoring Portal if it is assigned in the onway director.

The following sections are accessed by clicking on a customer card. A new main navigation on the left side opens for customer specific configuration.

Reporting

Permissions and settings must be configured to be able to access reports or log data such as the SMS registration log.

Permissions

First of all, one or more group(s) must be assigned to a customer. You can choose groups which were defined in customer permissions.

For these (Sponsoring Portal) groups, report categories are enabled or disabled. This means that reports or logs of a customer can either be accessed or not.

Settings

Specific settings such as retention time for data logs can be configured, too. The retention time defines how long data is retained. If the log contains sensitive fields such as MAC addresses or phone numbers, it is anonymized after an anonymization time. Such fields are not available earlier than the anonymization time.

If a customer is deleted, all reporting configuration and data of this customer is deleted, too.

macman

The most important macman settings are defined here.

General Settings

General settings such as retention time of deleted network access accounts and network access account sessions, and other session related settings.

Network Access Groups

A network access group (NA Group) is a container for accounts or devices. Such items must be unique within a NA Group. A NA Group is assigned to a customer and to a VLAN. A customer can have multiple NA Group’s. The following network access groups are available:

PEAP - Protected Extensible Authentication Protocol
iPSK - Identity Pre Shared Key
MAB - MAC Authentication Bypass
My Device - Also known as BYOD, "Bring Your Own Device"

All NA Groups except My Device are extended with access permissions. The permissions are defined for a customer group and have the following modes:

Account Read
Account Create
Account Edit
Account Delete

A higher permission includes a lower permission automatically. It is possible to combine network access groups into a network access group view.

PEAP, iPSK and MAB NA Groups can be extended with tags and with a custom input template.

Opening a NA Group opens a new main navigation on the left side.

PEAP Network Access Group

A PEAP network access group has a unique name. A realm is optional, as long as a single NA Group is in use. It must define a realm if more than one NA Group is defined, to distinguish user accounts.

iPSK Network Access Group

An iPSK network access group has a unique name and needs a Pairing VLAN in addition to the VLAN.

MAB Network Access Group

A MAB network access group has a unique name.

My Device Network Access Group

A My Device network access group has a unique name and needs a Pairing VLAN in addition to the VLAN. A realm is optional, as long as a single NA Group is in use. It must define a realm if more than one NA Group is defined, to distinguish user accounts.

My Device Settings

My Device settings specify how a new user device is handled by the onway director.

As the settings are quite detailed, they are separated into the following sections:

Network Options - defines NA Group, SSID and more
Acceptable Use Policy (AUP) Options - AUP files can be uploaded
Permissions - defines who can use My Device
User Options - defines username/password characters and more

Input Templates

Input templates are used to extend an input sidebar with custom fields. An input template is identified by its unique name and its type.

The administrator can define as many input templates per customer as she needs. An input template extends an input sidebar, such as in network access groups. It allows the administrator to query for custom data.

Custom Fields are language aware. The administrator can but does not have to define the custom field name in english, german, french and italian. At least one language must be provided. onway director will show the field in the user defined language (see settings), or fallback to the language in this order en→de→fr→it.

Type

As of now, three input template types are available:

Text - text field
Yes/No - choose field
List - selection field

Text

A text field to read any character. A regular expression can be defined to validate user input.

Yes/No

A simple option to choose either yes or no.

List

Define a list of items and choose one or some.

6.2.2. System

One important aspect of the onway director is its distributed service infrastructure. See how clients and servers are connected.

The configuration is system-wide and independent of a particular customer.

Remote Client

The onway director uses the Remote Client to connect to one or to multiple MPP’s, macman’s or onway controllers. Remote Clients are applications which are automatically started together with the Sponsoring Portal. Such application are called remote peers.

How do we reach remote peers? For MPP, the communication uses TCP/IP on port 9011; macman uses port 9013; onway controller uses port 9015

The communication between the onway director and the remote peer’s is encrypted and uses X.509 certificates for authentication. Client details are shown in the Administration → System → Remote Client sub-menu.

Connections must be configured on both parties but can be done independently, even if one party is offline. Connections are configured in:

MPP Administration → MPP → Connections
macman Administration → macman → Nodes
onway controller Administration → onway controller → Nodes

Server details are shown in the corresponding sub-menus.

In MPP a connection is called a Remote Peer while in the onway director it is called MPP connection. A connection to a macman or onway controller is called a connection to a Node

Processes

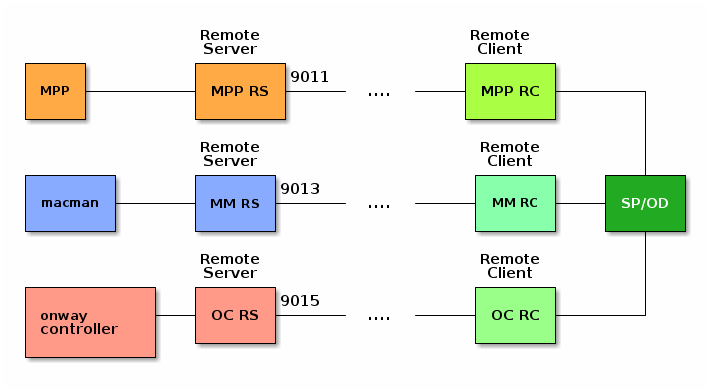

The following picture illustrates how the processes are connected to each other. The remote servers listen to a fixed TCP/IP port.

Remote Server port usage:

MPP - 9011
macman - 9013
onway controller - 9015

Connection State

A connection to a remote peer qualified by a State. It provides three values:

DISCONNECTED - peer is not reachable, or peer did not trust
UNTRUSTED - peer certificate is not trusted by us
CONNECTED - goal state, both parties trusted each other

The state will be shown as DISCONNECTED, if the remote peer did not add the onway director as its remote peer before.

The onway director tries to establish a connection to the remote peer for an infinite period of time. The connection is not established as long as the certificates are not trusted. This state is shown as UNTRUSTED. The Peer ID and the SHA-256 fingerprint of the certificate are shown to identify the other party.

The Peer ID corresponds to the Subject Alternative Name (SAN) of the certificate and is equal to the hostname of the system during installation

To establish a secure communication channel, both parties (onway director and remote peer) must trust each other. Trusting is a manual interaction, done by the administrator. A click on the lock button and approval changes the state to DISCONNECTED if done on one party.

It changes to CONNECTED, if both parties trust each other, and after a successful handshake has been done between onway director and the remote peer. This is the required final state for secure communication between the parties.

Disconnect onway director from a peer

If one party wants to revoke an established connection for any reason, a click on the unlock icon with approval is enough. The state changes to UNTRUSTED on the onway director and to DISCONNECTED on the remote peer. Communication between onway director and remote peer is refused. Please note that the onway director keeps trying to establish the connection to the remote peer.

A connection can be deleted if it is not required any more by clicking on the delete button.

Renew a certificate

It is possible to renew the built-in certificate in Administration → System → Remote Client. But be careful. All configured remote peers must trust the new certificate to be able to communicate with the onway director!

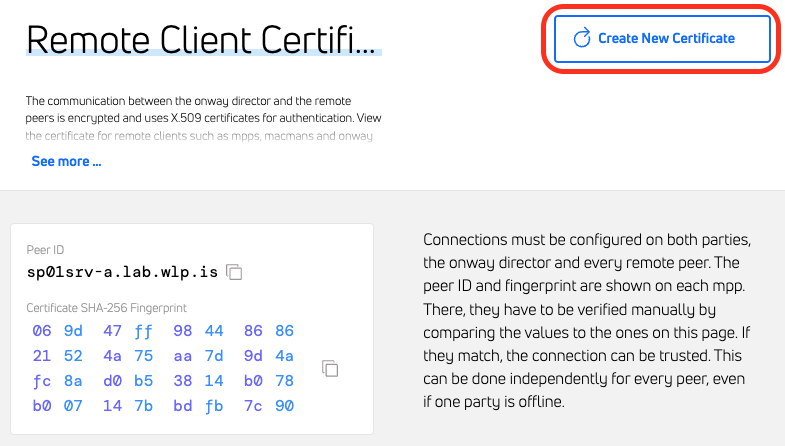

Click on the button Create New Certificate to re-create a new remote client certificate.

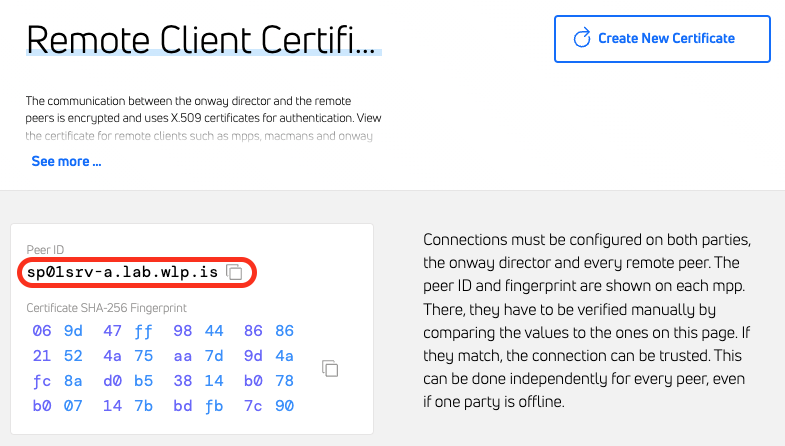

If you changed the hostname before creating the new certificate, the new certificate will have the new hostname as the Peer ID.

If you did not change anything, the new certificate will keep the original Peer ID.

Troubleshooting

Peer ID mismatch

As mentioned earlier, the Peer ID must be unique and is bound to the SAN. It is a configuration error if more than one connection to the same server is configured (i.e. by using the IP address and FQDN). Such a connection can never be trusted.

Remove the duplicate connection entry, and make sure to use the correct Peer ID.

Certificates

Certificates can easily be uploaded in the Administration → System → Certificates page. Such certificates will be added to i.e. a macman configuration later.

Host Configuration

The host configuration made during the installation of the onway director can be overwritten in the Administration → System → Host Configuration page.

Be aware that certain changes will require you to reconfigure parts of your macman, onway controller or MPP’s. You will therefore need administration rights on all these systems.

Hostname change

When changing the hostname, you must also perform the following steps on each configured MPP.

Log in to the MPP and go to Services → Configuration → Remote Server → Remote Peers

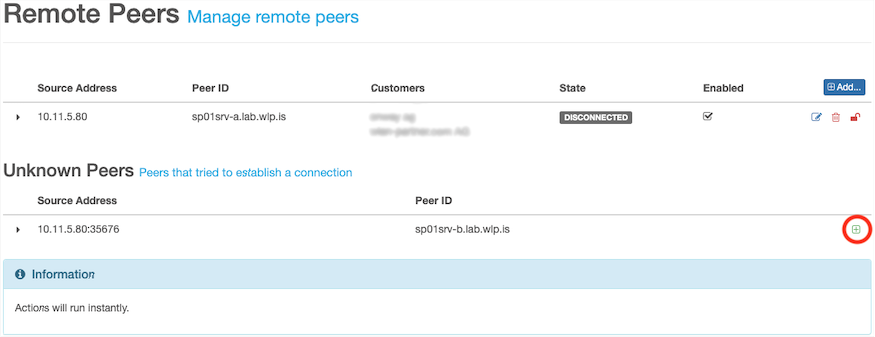

Add the unknown peer whose Peer ID matches the new Peer ID of the onway director

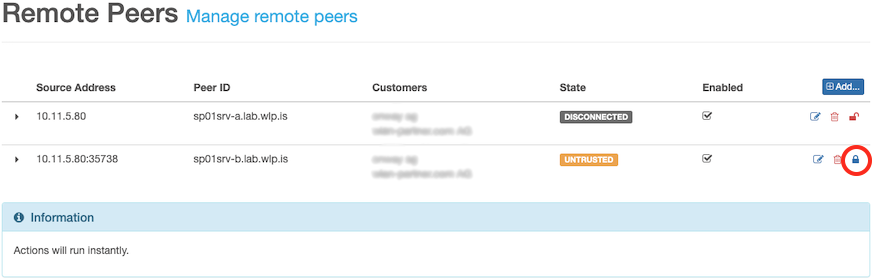

Trust the certificate of the new remote peer

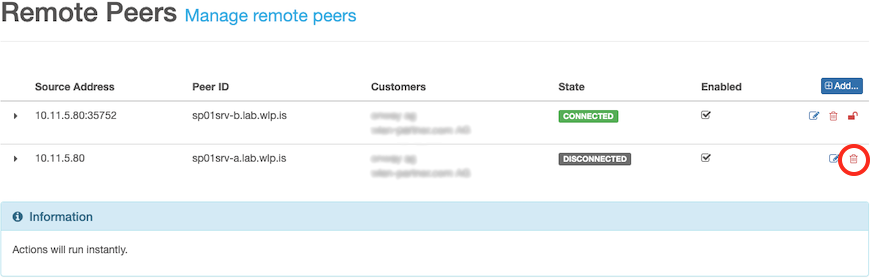

Delete the old remote peer

IP address change

When changing the IP address, you must also perform the following steps on each configured MPP, macman- and onway controller node.

MPP changes

Log in to the MPP and go to Services → Configuration → Remote Server → Remote Peers

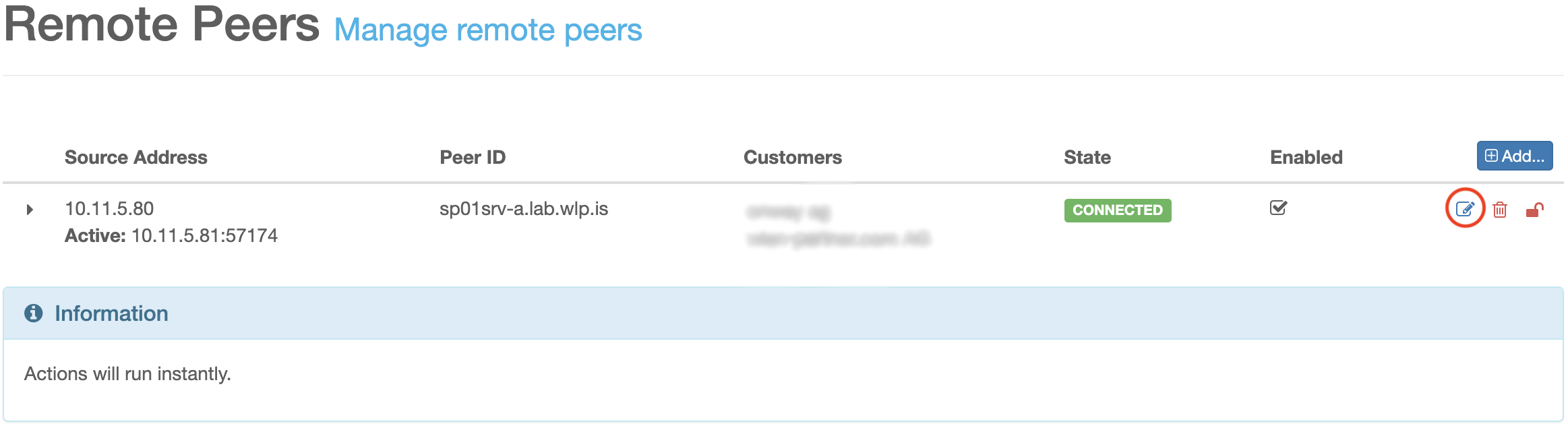

Change the source address of the remote peer whose Peer ID matches the Peer ID of the onway director

macman- onway controller node changes

Log in to a macman node / onway controller node via SSH
Reconfigure the remote server package with the new IP of the onway director

Mail Configuration

Mail configuration of the local postfix can be created or uploaded in the Administration → System → Mail Configuration page.

6.2.3. Users

Logged in Users

The table shows users which are currently logged in to onway director.

6.2.4. MPP

See how to connect onway director with MPP.

Connect onway director with MPP

First, add a MPP connection by adding the IP address or FQDN, and the Peer ID of the MPP server. The MPP Peer ID is defined in the MPP in Services → Remote Server → Service. It is the hostname of the MPP. It is unique and can be configured for exactly one MPP connection.

On the MPP, add the remote peer by adding the Source address and Peer ID of the onway director. The onway director Peer ID is defined in the onway director in Administration → System → Remote Client. It is the hostname of the onway director.

Trust the connection and check the connection state.

Disconnect onway director from MPP

See disconnect peer.

MPP data stream services

Reports are created with log data which is streamed from MPP over a remote client connection.

Enable the following settings to stream data from the MPP to the onway director. Please note that the MPP must enable the corresponding data stream services on its remote server services.

User Session: enable this service to store the user session history log
SMS Accounting: enable this service to store the SMS accounting log

The log data which is provided by these services, is used to create various reports.

6.2.5. macman

See how to connect onway director with a macman node.

Connect onway director with macman

Macman nodes are configured in Administration → macman → Nodes. Add a macman node by adding the server IP address or FQDN, and the Peer ID of the macman node. The macman Peer ID is the hostname of the macman node. It is unique and can be configured for exactly one macman connection.

The macman remote peer is added during installation of the macman-remote-server package. The peer_ip field of the configuration file /var/lib/macman-remote-server/config/host.json defines the onway director as its peer.

Trust the node and check the connection state.

Node Details

A click on a macman node card shows many details of that remote node, such as its configuration, connection state, connection certificate details and more.

Disconnect onway director from macman

See disconnect peer.

Configurations

The onway director supports multiple macman configurations. For example, you can imagine defining a laboratory configuration, a test configuration and a production configuration. The configuration acts as a container. A configuration has a unique name. It contains the macman revisions. A revision is a particular configuration at a time.

Instead of configuring node by node, the configuration workflow is the other way round:

Change the working configuration
Create a config revision
Assign the revision to one or many nodes
(Back to 1.)

This allows to update nodes quite fast, and even supports offline configuration.

NA Group Views

A network access group view is a container for network access groups. It is used if multiple NA Group’s are part of the authentication chain. This chain specifies the processing order for authentication. It is configured per NA Group View.

NAS Clients

Network Access Server Clients have a unique name, IP/Network, a shared secret with the RADIUS server (https://freeradius.org/) and reference at least one NAS Identifier.

The NAS identifier links to a network access group view.

The Big Picture

This graph shows how these components are connected to each other:

RADIUS

A previously uploaded certificate can be added to the RADIUS configuration.

Revisions

A revision is a snapshot of a particular configuration at a time. It is identified by an ascending revision ID. A new revision can be created by the administrator at any time, if the working configuration has been changed. All revisions are kept in a revision log table. Select a revision to show its details.

Any revision can be loaded as working configuration. It can be deleted to remove it from the log, too. All referenced items of a revision must be removed, too. A revision can’t be removed otherwise.

A revision is immutable and can’t be changed; create a new revision instead, if you want to make configuration changes

Distribute new Revision

This is a two-step action: assign → apply.

A revision can be assigned to one or many nodes. If more than one node is selected, the configuration revision is applied to one node after another. It is persisted in /var/lib/macman-remote-server/config/macman-config.json on the node. If a revision can’t be applied, a rollback to the previously applied revision is done automatically. The assigned and applied revision of a node is shown in the node details.

A macman revision can be assigned to a macman node, even if the node is disconnected. The distributed service infrastructure will try to make sure that all nodes have the assigned revision. A pending configuration update message might be shown. The node details provide all important information of a node.

Revision Cleanup

It is possible to remove unused revisions in one step.

6.3. Reporting

onway director is a reporting platform, too. It is connected to the remote client for this purpose. The remote client receives raw data from its peers continuously. This data is the basis for various reports.

All reports belong to a report category. The categories are used to group reports of the same topic. The following categories do exist:

User Session Reports: user session history data
SMS Reports: SMS accounting data

Users with reporting permissions are allowed to work with reports. The administrator doesn’t need special access right. He has access to all reports.

6.3.1. Report Overview

In this chapter you will find all currently supported reports:

User Session - Count

Shows the number of sessions.

User Session - Returning Users

Shows the number of users, grouped by their number of sessions. The report is divided into the following categories:

1 session
2-4 sessions
5-9 sessions
More than 9 sessions

User Session - Traffic

Shows the data traffic of users, grouped by download and upload of sessions. The report is divided into the following categories:

Incoming user traffic in the positive range of the y-axis
Outgoing user traffic in the negative range of the y-axis

User Session - Duration Distribution

Shows the distribution of sessions, grouped by their duration. The duration of a session is divided into the following categories:

0-5 minutes
5-15 minutes
15-30 minutes
30-60 minutes
1-2 hours
More than 2 hours

User Session - Total Duration

Shows the total duration of sessions.

User Session - Hourly Distribution

Shows the average number of sessions by hour of day.

User Session - Weekday Distribution

Shows the average number of sessions by weekday.

User Session - Tourism

Shows the number of sessions, grouped by users that have a phone number as their username. The report is divided into the following categories:

Sessions with domestic phone numbers
Sessions with foreign phone numbers
Sessions without phone numbers

User Session - User Registration

Shows the number of sessions, with newly registered users and others. The user report is divided into the following categories:

Sessions for which a new local user was created
Session with already known or anonymous users

User Session - Device Registration

Shows the number of sessions with new or updated user devices. The report is divided into the following categories:

Sessions for which a new device was registered
Sessions for which a registered device was updated
Sessions for which a registered device changed the user
Sessions for which no device was registered or updated

User Session - Authenticator

Shows the number of sessions per authenticator.

User Session - Profile

Shows the number of sessions per profile.

User Session - Type

Shows the number of users, grouped by the type of sessions. The session type is divided into the following categories:

Unauthenticated sessions
Login sessions
Auto sessions
Route sessions

SMS - Count

Shows the number of sent SMS as chart.

SMS - Country Distribution

Shows the number of sent SMS by country as table.

6.3.2. Create Report

There are two ways to create a report:

Periodic Report: schedule reports for continuous execution
Report: trigger an immediate or delayed report execution

Both types consist of two parts, a report configuration and the resulting report.

If a configuration is saved, it is listed within the reporting category.

A generated report is chosen from this list by clicking on its name. A configuration can be edited, or deleted. If a configuration is deleted, the derived report is deleted, too.

Report Configuration

A report configuration is defined for a category. All charts within the category use the same configuration. This makes it easy to compare the charts. It is possible to add multiple report configurations for the same category. A report configuration can be edited and reused. It must be removed manually.

It is possible to create multiple report configurations.

Example: adding a report configuration for the user session category will produce all available charts of that category.

A report configuration defines main aspects of the report, such as data filters, time period or data retention, execution and report permissions. The following sections explain this in more detail.

Data Retention (periodic report)

A periodic report is configured once, but runs every night. You can configure how many daily or monthly reports shall be kept, and if data from the past (earlier than now) shall be used or not.

Time Period (report)

Choose a time period. The From field is limited by the main data retention, which is configured by the administrator in the reporting settings. The To field can be any time after from.

Data Filter

A filter is added to limit the data of the report. A site filter can limit the number of involved sites for a session report, for example.

Tip: a filter can be configured as a regular expression in the advanced filter mode. Expressions can be tested immediately on existing data. A regular expression simplifies the filtering of sites that follow a naming convention.

Execution

Generation of a periodic report and a report is almost similar. Run a report configuration immediately, or run it delayed or within a user defined interval. Generation of a periodic report can be turned on/off. All reports are scheduled on an application.properties cron entry of the remote client.

Permissions

Access permission can be added to the report configuration, typically to limit access:

Read: defines groups with just read access
Edit: defines groups with read, create, edit and delete access

The edit permission includes the read permission.

Access is defined by the administrator. The administrator doesn’t need special access permissions.

6.3.3. Analyse Reports

After a report configuration was executed, multiple charts are generated and persisted on the remote client for analysis. The list of available reports is shown in the onway director. The charts open by a single click on the report name. In case of user session, a huge page of charts shows up.

You’re able to open report details, edit or delete the configuration which led to this report. You’re even able to regenerate the report in case of a periodic report. Of course you need the permissions for such actions.

Filter

Right on top, you’re able to adjust the filter, which is based on the underlying data. This allows you to analyze the data further. You can change the duration or the time range, and the sampling rate. The sampling rate shows the report as a time series over day or month. Reports have an additional sampling rate called aggregated.

Chart

The report chart provides additional features. A small info box explains the chart for better understanding.

Each chart has a status which shows details about its generation. In case of an error during the generation, it is possible to restart the generation.

Some charts offer to switch between percent and absolute values. Use percent to easily compare charts. Use count to see the amount of underlying data that led to this chart. Average/Total which is used, too, behaves similar.

Finally, click on the labels in the legend and turn values on/off to focus only on the data you want.

6.4. Logging

onway director offers access to logging data, too. It is connected to the remote client for this purpose. The remote client receives raw data from its peers continuously. This data can be accessed.

Users with reporting permissions are allowed to use logging. The administrator doesn’t need special access right. He has access to logging.

6.4.1. Logging Overview

In this chapter you will find all currently supported logs:

SMS Log

SMS Log offers access to the raw log data. SMS registrations can be searched and filtered.

It is possible to enable auto refresh, to see incoming registrations continuously.

6.5. Network Access Account

A network access account (NA Account) belongs to a Network Access Group. Four main types of NA accounts exist:

PEAP (Users/Devices)
iPSK Devices
MAB Devices
My Devices (Users/Devices)

NA Accounts can be added manually, or imported/exported as CSV.

All PEAP, iPSK and MAB accounts can be defined with a validity. It defines a start / end date for the account. Tags can be assigned to group accounts.

An account can also be deleted. It is marked as deleted in fact, and remains for a configurable retention time within onway director. If the retention time is exceeded, it is removed permanently.

The Search/Filter component on top offers many ways to find specific accounts. It can be used in combination with the CSV export, to limit the number of accounts. Or it allows finding deleted accounts, accounts with specific tags and much more.

6.5.1. PEAP Users

A PEAP user can be configured with the onway director. Search and manage PEAP users who can connect on a dedicated network via macman. Access is granted using a username and a password.

6.5.2. iPSK Devices

An iPSK device can be configured with the onway director. Search and manage iPSK devices that can connect to a dedicated network via macman. Access is granted using the MAC address and a WLAN Password (PSK).

Add manually

An iPSK device can also be added manually by filling in the fields.

Open the sidebar by choosing 'Add manually'
Fill in the fields and save the form

The device’s additional parameters can then be adjusted and saved in the next step.

6.5.3. MAB Devices

A MAB device can be configured with the onway director. Search and manage MAB devices devices that can connect to a dedicated network via macman. Access is granted using the MAC address only.

6.5.4. My Devices

A My Device (also known as Bring Your Own Device) can be configured with the onway director. Manage your My Devices to connect them to a corporate network via macman. Access is granted via the credentials provided.

To access My Devices, the Use My Device permission must be granted in My Device settings.

6.5.5. CSV

Accounts of type PEAP, iPSK and MAB are supported.

Export

CSV export downloads the complete list of network access accounts. Such accounts can be opened in a spreadsheet application. The character encoding is UTF-8, and the separator is derived from the language or defined by your settings.

The export respects the filter settings. This allows to export accounts of a specific network access group, for example.

Passwords are not exported.

Import

CSV import consists of three steps:

Prepare and upload CSV file
Map columns to network access account fields and run the import
Analyze import result summary, any maybe redo CSV import with failed accounts

Accounts which are already stored in the onway director are updated if they appear in the import.

Preparation and upload

Make sure that your CSV file contains all relevant fields. PEAP users need a username and a password, while iPSK devices need a MAC address and a PSK, and MAB devices need a MAC address.

Please do not mix accounts of different network access groups. All uploaded accounts must belong to the same group.

An exported CSV file is UTF-8 encoded. This is the default encoding. The alternative encoding ISO-8859-1 (Latin 1) is supported, too.

The locale defines the separator, typically ',' or ';'. You can define your own separator.

Use the header line of a CSV export. onway director will try to map columns automatically if a header line is available. A header line can be marked with a #, but does not have to

onway director supports several formats for time values, according to ISO-8601, or to our custom format:

custom format, 03.12.2011 10:15:30
ISO date-time format, i.e. 2011-12-03T10:15:30+01:00
ISO instant format, i.e. 2011-12-03T10:15:30Z

Column mapping and import

Columns are mapped automatically if the uploaded file has a header line with the correct names.

Examples:

username is mapped to the Username field
mac_address is mapped to the MAC Address field
password → Password
psk → PSK
valid_from → Valid from
tag → Tags
and so on…

All available columns from the CSV file are presented in select boxes for all NA account fields. Two consecutive lines of the uploaded file are previewed in the select boxes. The preview shows the spreadsheet application column ([A1]..[Z99]) in order to keep the overview.

The mapping shows entries such as [A1] my cell text. This defines a cell on the first column (A) and the first row (1) of your input file

Increment or decrement Start at CSV row to preview different lines of the file.

If the uploaded file doesn’t provide a header line, you must set the mapping yourself, field by field. So define a header and things go easy.

Set start at CSV row = 2, if a header line is provided, to skip the header line. Otherwise you’ll see a failed line afterwards. If a header line is marked with #, it is skipped automatically, and you don’t need to start at row 2.

Start the import if at least all mandatory fields are set.

Import summary

onway director imports the file line by line. A percentage progress is displayed during import. At the end, a summary shows up. Is lists the number of inserted and failed accounts, if an error happened during import.

Errors might happen for various reasons, such as missing data, invalid data or if the header line was not skipped.

All erroneous data can be downloaded as CSV to be corrected in the spreadsheet application. Close the sidebar and redo the import with the failed accounts.

6.5.6. NA Account Details

Click on a specific NA Account to see all its Details.

Sessions

The Sessions tab shows very detailed information about sessions of this NA Account.

Example:

Status

TERMINATED

Client IP

10.11.16.223

Client MAC

00:24:d7:e7:3f:f8

Started at

04.11.2021 13:58:06

Ended at

04.11.2021 14:09:15

Acct-Terminate-Cause

User Request

Download

17.22 KB

Upload

10.50 KB

VLAN

539

Called-Station-ID

68-7d-b4-e7-57-60:LAB-DEV-BYOD

Acct-Session-ID

6183d8db/00:24:d7:e7:3f:f8/3956

Session ID

7a75acfdafc7624b02dbbd87ed9d8149ecee5fc4

NAS IP

10.6.9.20

NAS Identifier

wlc01zrh2

NAS-Port-ID

NAS-Port-Type

Wireless - IEEE 802.11

Journal

The Journal tab shows all modifications that were done on this NA Account. It lists the changed fields (before/after), and shows details of the author of the change.

Example:

Action

EDITED

Date

05.11.2021 08:43:23

Changed Fields

Comment

onway test user

→ test user

Valid For

Unlimited

→ 2 Days

Authored by

Username

local\sp-admin

SID

S-U-1

7. What’s New Archive

7.1. onway director 5.6

Support for onway routers: This version is the first in a series in which we are introducing support for our onway routers.
onway director API Breaking Change: The SystemDTO response returned by several onway director API endpoints /api/<customerKey>/system/ and /api/system/ has been changed: The field editSystemTemplateId is now optional.

See latest API documentation for details.

7.2. onway director 5.5

Tag permissions: So far, administrators were allowed to add tags to each entity if "Allow additional tags" was activated for the corresponding group. With this version, administrators must also have the "Assign" permission to do so.

7.3. onway director 5.4

CarlOS Telemetry Data: The telemetry data from all connected customer entry points is collected and stored locally on the onway director.

7.4. onway director 5.3

Big update: In this release we have closed over 75 tickets and added support for handling onway routers. A long-requested feature is now available. It is now possible to specify which columns are to be displayed for each table.
onway director API Breaking Change: The response returned by the onway director API endpoint GET /api/macman/group has been changed. See latest API documentation for details.

7.5. onway director 5.2

It is now possible to define an image and an introductory text that welcomes all users who log in to onway director.

7.6. onway director 5.1

The deb package bastard-remote-client was replaced by cep-remote-client. Please remove the former package manually with apt autoremove --purge to clean up all remaining traces of this obsolete package.

7.7. onway director 5.0

The onway director was equipped with a new front end. It has the same features as before, but got a fresher and more modern look-and-feel. Workflows were improved and simplified to increase productivity.

Legacy macman users and devices: Legacy macman-users and -devices within Sponsoring Portal were dropped. Use the onway director to configure macman.

configure the new macman before you upgrade to onway director 5.0.

onway director API Breaking Change: The response returned by the onway director API endpoint GET /api/tags/{customerKey} has been changed. See latest API documentation for details.
NGINX configuration: The nginx configuration is now managed by the system and no longer needs to be edited manually. After the upgrade, the server will use the self-signed snake-oil certificate until the correct certificate is configured on the host configuration page.

7.8. onway director 4.14

Additional information about mpp user accounts: Now you can see when an account was last used or how long it is valid. This information is gathered once a day by the mpp.

7.9. onway director 4.13

Trusted Certificates: With this version, the trusted certificates can be managed via the web console. Thus, there is no need to work with the Java keytool on the CLI anymore.

7.10. onway director 4.12

Health Report: Each application now provides a health-report.json that can be used to check the health of our applications.

7.11. onway director 4.11

NAS Identifier: On the NAS client, the NAS identifier can now be configured as a regular expression.
MAB Failure VLAN: A failure VLAN can be configured in the network access group view. This VLAN is returned if an MAB request does not find an account.

7.12. onway director 4.10

Health Report: With this version we have integrated a health service that writes the state from the onway director every minute to /var/lib/sponsoring-portal/health-report.json. This file can be used to monitor the application. If the verdict is ok, everything is fine. If the property is validUntil after now, something is wrong and the health report should be ignored and an error returned.
Default Redirect: It is now possible to configure the default redirect after the user logs in. In the file /usr/lib/sponsoring-portal/config/application.properties the property od.default-login-redirect can be set to either sp for Sponsoring Portal or od for the onway director.
Cisco Interface Template: It is now possible to configure an interface template for each network access group, which is present in the RADIUS responses (Cisco-AVPair: interface-template-name=<template name>).

7.13. onway director 4.9

system agent

Automatic configuration of local daemons like Kafka, Zookeeper and PostgreSQL

onway director

Make host configuration (IP, Gateway, Hostname, NTP, …) possible via web console
Support secure FTP

7.14. onway director 4.8

onway director

List logged in users
Disable LDAP directory synchronization at startup

7.15. onway director 4.7

onway director

Configure LDAP synchronization interval as CRON expression
Add the possibility to disable LDAP synchronization

7.16. onway director 4.6

onway director

Allow users to log out directly from onway director
Allow local user to change the password directly in onway director
Mark synchronized user accounts as deleted
Manage carlos powered devices

7.17. onway director 4.5

onway director

Network access accounts can be filtered by their online status
Improved filtering of network access accounts by last seen date
Assign tags via network access groups
Ability to delete multiple network access accounts at once

7.18. onway director 4.4

onway director

Passwords are displayed colored for better readability
Network access accounts can be filtered by the date they were last seen
Realm of the PEAP user is shown in the edit view
iPSK QR code rotation time is now configured as cron expression
The administrator now sees only configured functions

7.19. onway director 4.3

onway director

CSV import for network access accounts

7.20. onway director 4.2

onway director

My Devices (BYOD)
Export network access accounts as CSV
Introduce a public API for working with network access accounts

7.21. onway director 4.1

onway director

View status of macman accounts/devices
Session history of macman accounts/devices
View deleted macman accounts/devices
Allow download of MPP report data as JSON or CSV

7.22. onway director 4.0

onway director

macman 3.0 (PEAP, iPSK, MAB)
Ignore empty lines and lines beginning with '#' at CSV import
Upgrade to Ubuntu 20.04

7.23. Sponsoring Portal 3.4

sponsoring portal

LDAP object filter for users and groups

onway director

Session distribution statistics
Device registration report
User session duration report
User session authentication report
User session count report
User session tourism report
User session type report
User session profile report

7.24. Sponsoring Portal 3.3

onway director

Intermediate MPP accounting updates for more accurate statistics
Multi tenancy support
Filtering by Regex

7.25. Sponsoring Portal 3.2

onway director

Stream user session history log from MPP and show duration and quantity reports on the onway director.
Improved UI Design

7.26. Sponsoring Portal 3.1

onway director: Gather SMS accounting information from the MPP and show them on the onway director.
PostgreSQL 12: The database of the Sponsoring Portal has been migrated to PostgreSQL 12.

7.27. Sponsoring Portal 3.0

Ubuntu 18.04 Bionic: The Sponsoring Portal has been updated to the new Ubuntu 18.04.1 Bionic.
Java 11: The Sponsoring Portal has been upgraded to Java 11.
PostgreSQL 10: The database of the Sponsoring Portal has been migrated to PostgreSQL 10.

7.28. Sponsoring Portal 2.8

MPP Voucher Factory: You can create multiple MPP vouchers at once. The factory is enabled by configuring the field Count in the MPP Voucher Input Template.
MPP Voucher: It is possible to limit the voucher duration in 'Permissions & Settings'.
Move entities: Entities such as guest user, MPP device, MPP voucher, Macman user and Macman device can be moved from one organizational unit to another. Delete permission on the source (old) OU and create permission on the target (new) OU are required.
Upload CSV File: The file upload offers to download a sample CSV file for the chosen entity. This sample file can be used as a template. It contains the required CSV header fields.

7.29. Sponsoring Portal 2.7

LDAP Directory configuration: With this version, you can configure different base DNs for users and groups.

7.30. Sponsoring Portal 2.6

API: We added an API to manage Guest users, MPP devices, MPP vouchers, Macman users and Macman devices. See dedicated client API documentation for more information.
Improve SSL security: Peer verification algorithms have been improved to make SSL connections more robust.

There may be situations where some user directories that were previously able to successfully connect to an LDAP or AD server may no longer be able to do so. In most cases, this is the reason because an IP has been specified instead of the fully qualified domain name.

8. Changelog

8.1. onway director 5.7.0

Released: May 8, 2024

Bug

OD-1711 Adapt journal "create" fields layout
OD-1719 Device Slot is not visible if system is decommissioned
OD-1724 ICCID check fails when fill byte is present
OD-1726 Modem is displayed as connecting if no state is set
OD-1728 All user accounts loose their default customer settings when a customer is deleted
OD-1729 Some pages do not respect the user-defined page size
OD-1734 Deleting a system without a device causes problems for the WAL entry handler
OD-1737 Product number not searchable
OD-1738 Wrong speed unit used for GPS velocity speed value
OD-1743 Product number changes are not propagated
OD-1745 Gauges are not always displayed correctly in Safari

Story

OD-1418 Show system widget in full screen mode
OD-1657 Extend map component to show logbook
OD-1660 Logbook retention settings
OD-1678 Show systems and their position on a map
OD-1702 Show warranty end date
OD-1704 Polish SIM card index page
OD-1710 Sync product SKU to onway director and display it
OD-1714 Display some telemetry data as unknown when the management connection is offline
OD-1717 Telemetry raw data retention settings
OD-1725 Change sort in onway router and device inventory index view
OD-1727 Handle optional CarlOS telemetry fields
OD-1732 Move new layout widget to customer’s homepage
OD-1733 Move welcome widget to customer’s homepage

8.2. onway director 5.6.0

Released: April 9, 2024

Story

OD-1497 Deploy a system
OD-1517 Move onway router to another group
OD-1550 Equip the device slot of a system
OD-1552 System detail view
OD-1554 DSI service providing routers
OD-1556 Telemetry data processing infrastructure
OD-1573 Migrate from Tomcat to Jetty
OD-1579 Store device status information in the database
OD-1581 Extend the system with life cycle information
OD-1590 Show modem information on the device status view
OD-1593 Display device information on the device status view
OD-1600 Decommission a system
OD-1601 Event log
OD-1602 Device event log
OD-1603 System event log
OD-1604 Store device modem status information in the database
OD-1605 Store device tunnel link status information in the database
OD-1606 Store device link status information in the database
OD-1607 Page Header Cleanup
OD-1610 Display device link information on the device status view
OD-1611 Display tunnel link status on the device status view
OD-1616 System Journal View
OD-1617 Delete a system
OD-1618 Handle deletion of onway router
OD-1619 Display GPS information on the device status view
OD-1620 No auto Wizard on System Creation
OD-1623 Make macman node index table customisable
OD-1629 Make cep node index table customisable
OD-1630 Cleanup of telemetry data
OD-1635 Store OS version in device inventory table
OD-1646 Send onway router first seen TS to onway one as router status update
OD-1651 Hostname on device inventory index page
OD-1652 Make customer key visible in customer switcher
OD-1653 Customer map settings
OD-1656 Store GPS and radio module information
OD-1663 Save additional information of the modem status
OD-1665 Store SIM card information
OD-1667 API for integrating information into the customer’s environment
OD-1683 Change Wi-Fi telemetry sources reporting interval
OD-1684 Do not display Wi-Fi interfaces
OD-1687 SIM card journal
OD-1703 Dependent data must be stored together
OD-1708 Handle "track" as an optional gps-velocity field
OD-1712 Provide the modem signal quality from the backend
OD-1713 Extend data gateway

Bug

OD-1615 Password error message in wrong language
OD-1624 System template name not visible for read-only systems
OD-1626 NPE in LogicalDecodingServiceImpl shutdown
OD-1628 Avoid empty "Deleted At" lifecycle entry in device inventory detail view
OD-1631 Device status telemetry WAL handler stops if an entity is unknown
OD-1636 Remote host for peering cannot be changed
OD-1637 Skip empty telemetry data
OD-1638 Certificates not sorted correctly
OD-1640 Skip system deployment for devices that are not onway routers
OD-1641 Network access group detail view tags are still in header
OD-1642 Tags of a device not shown in wizard
OD-1643 EventLogRepository must skip duplicates
OD-1645 Alert not correctly shown due to CSP
OD-1647 A system with multiple slots cannot be deployed if the devices are swapped
OD-1648 A system with multiple slots and swapped devices cannot be reverted
OD-1649 Certain optional ModemStatusTelemetry fields are defined as mandatory fields
OD-1664 Device Inventory Journal: edited without visible changes
OD-1680 Deadlock situation when deleting orphaned network access accounts
OD-1682 cep Configuration and System Template Status Badge Overflow
OD-1685 Unexpected error when trying to delete a used system template
OD-1688 Journal entry is missing in the device journal after a decommissioning action
OD-1689 Various display issues in the detail view of a system
OD-1690 Customer select does not work on system template revision detail view
OD-1691 Loading state shown on NA account sessions view on auto refresh
OD-1692 Wrong default map in OD
OD-1698 Byte unit in reporting charts is not formatted correctly
OD-1700 Missing "|" in device inventory search_col
OD-1701 Missing search index for device_inventory, system, onway_router und sim_card table
OD-1705 Not rolled out systems have weird indicator
OD-1706 Deleted devices can be assigned to a system device slot
OD-1707 Broken change password view in legacy sp-console
OD-1709 Inappropriate actions are suggested on a detail page of a deleted device
OD-1716 Deletion of onway router via DSI stream throws exception
OD-1720 Online status of onway router is not propagated to onway one when a system is decommissioned

8.3. onway director 5.5.0

Released: January 15, 2024

Story

OD-1585 Enforce tag permissions for administrators

Bug

OD-1596 Missing unpublished changes indicator on system template index view
OD-1598 OCSP stapling check is not good enough
OD-1608 macman configuration with revision 0 should not be a latest configuration revision
OD-1609 Wrong hasUnsavedChanges representation when no latest revision is available
OD-1612 onway director upgrade hangs when executed with Ansible
OD-1613 Acknowledge skipped logical sequence numbers

8.4. onway director 5.4.0

Released: December 22, 2023

Story

OD-1553 Configure onway telemetry configuration
OD-1555 Consume and store telemetry data received from cep
OD-1582 Upload image for welcome widget for preview
OD-1583 Allow selection of system template revision

Bug

OD-1580 Make Inputs optional
OD-1592 SystemIndexPage search filter not clearable
OD-1594 SMS Log nav menu permission error
OD-1595 Wrong health items for new nodes

8.5. onway director 5.3.0

Released: December 19, 2023

Story

OD-1240 Make index view of user session report paginable
OD-1241 Make index view of SMS report paginable
OD-1378 List and add cep configurations
OD-1427 Disable device management
OD-1449 Consume onway routers from onway one
OD-1450 Administrative onway router index view
OD-1451 Administrative onway router details view
OD-1452 Administrative onway router journal view
OD-1455 Consume onway router products from onway one
OD-1466 Apply cep configuration to node
OD-1472 Delete specific macman configuration version
OD-1475 Dynamic Table Columns for NACs
OD-1476 onway Router groups index view
OD-1477 onway Router group detail view
OD-1478 onway router index view
OD-1479 Device Detail View
OD-1480 Show onway router management connections
OD-1481 Device Inventory CSV export
OD-1482 Device Inventory Journal View
OD-1483 Allow additional tags for network access groups
OD-1485 Consume accounting events from customer entry points
OD-1486 DSI service for onway router states
OD-1487 Use sender address of mail configuration for data import mailer
OD-1488 Handle onway router session events
OD-1489 Cleanup onway router sessions
OD-1494 Link macman configs in NAG Delete Modal
OD-1495 Make Configuration Version clickable in macman Node Detail
OD-1498 device management permission index page
OD-1500 Better Support for Password Managers in Username/Password Fields
OD-1505 New state representations for NA accounts
OD-1516 Prevent changing input field type
OD-1518 System template index view
OD-1522 Prevent peering from being disabled
OD-1524 SIM card index view
OD-1525 onway router state adjustments
OD-1526 SIM card details view
OD-1527 SIM card CSV import
OD-1528 System template details view
OD-1529 Publish system template
OD-1530 onway router group adjustments
OD-1531 Hide password change function
OD-1543 Device Inventory Index View
OD-1544 Delete Device Management Group
OD-1545 System Index View
OD-1547 Updated BYOD users must not become invalid because their start date is in the future
OD-1548 Mark mpp as offline when it is in maintenance mode
OD-1549 System template device slot configuration
OD-1551 Show system template permissions
OD-1570 Security Headers
OD-1578 Rename system template permissions
OD-1584 Rename system’s identity to name

Bug

OD-1474 Empty macman config revision options in macman node edit wizard
OD-1492 Include validity limits when searching for NaAccounts by custom validity
OD-1493 CSV import task run twice
OD-1496 NaAccountSession pagination is broken
OD-1502 Multiple intermediate certificate upload may fail
OD-1503 Error sign in custom range filter disappears
OD-1510 Na account journal uses url parameters from index page
OD-1511 Show graph generation date in doughnut graphs
OD-1512 Remove line after doughnut graphs
OD-1513 Input template wizard start section error
OD-1514 Inappropriate "autoComplete" values for certain input fields
OD-1515 InputTemplateWizard corrupted list items
OD-1533 User cannot edit or delete BYOD device
OD-1534 Add Edit Button to BYOD Settings
OD-1536 Users with "byod_use" permission can read other users byod devices.
OD-1537 Details Page of unpaired BYOD device is visible
OD-1538 Assigning an onway router to a customer does not work from the details page
OD-1541 Customer Device Management Menu Entry
OD-1542 SSE console event stream is closed by Nginx
OD-1546 MppUserAccount validation error
OD-1572 onway router / device inventory behavior inconsistencies
OD-1577 BYOD appears to be enabled although it is not

8.6. onway director 5.2.3

Released: June 7, 2023

Bug

OD-1469 CSV import fails with an unexpected error
OD-1471 Bulk delete may delete all accounts

Task

OD-1470 Close import wizard when final decision has been made

8.7. onway director 5.2.2

Released: June 5, 2023

Story

OD-1415 Use MultiSelect in NA Index Views
OD-1445 Show last duration
OD-1446 Show graph generation date
OD-1461 Add Trusted State to all Nodes

Bug

OD-1464 My Device cannot be added

8.8. onway director 5.2.1

Released: May 26, 2023

Bug

OD-1463 DB cleanup timeout is too low

8.9. onway director 5.2.0

Released: May 17, 2023

Story

OD-1361 BackLink should go back where you came from
OD-1379 Sort view for logged in users by last seen field
OD-1386 Create one-remote-client
OD-1393 Enhance reporting status view
OD-1400 Allow the administrator to define an introduction on the home page
OD-1407 Cleanup node security information
OD-1443 Mark own session in the view of the logged-in users

Bug

OD-1404 Exception processing failure
OD-1436 Empty sms_accounting_log_raw tables are not deleted
OD-1439 X-Real-IP contains wrong IP address when running behind a reverse proxy
OD-1440 Field errors for duplicate server and peer ID are no longer displayed
OD-1458 No network interfaces for selection
OD-1462 SMS counting can lead to an "out of memory" exception

8.10. onway director 5.1.0

Released: April 13, 2023

Story

OD-1041 Save page size for pagination in user settings
OD-1223 Always use TIMESTAMPTZ instead of TIMESTAMP
OD-1224 Use decimal format for user session graphs
OD-1233 Merge DTOs of mmrc and bastardrc general settings
OD-1235 Trigger auto-refresh globally
OD-1274 Update existing password with new hashing algorithm, if necessary
OD-1277 Collapse app sidebar automatically when not useful
OD-1296 Use InputSwitch in Email Configuration
OD-1352 Show not found error messages in GUI
OD-1362 Prohibit some characters in the name of a user directory
OD-1365 Set default customer per user
OD-1366 Version notes do not always show line breaks
OD-1367 Allow configuration of multiple interfaces in host configuration
OD-1368 Allow configuration of multiple routes in host configuration
OD-1373 Show peer id when server name is an IP address
OD-1376 List and add cep nodes
OD-1377 cep node details and host view
OD-1380 onway error page
OD-1381 Rename bastard-remote- artificats to cep-remote-
OD-1382 onway one node details
OD-1384 Renamings in OD app navigation
OD-1391 Provide a public API for searching mpp devices
OD-1392 Provide a public API for searching mpp users
OD-1397 Create audit log that shows logins
OD-1402 Inform user in which configuration a network access group is referenced
OD-1405 Improve login logging
OD-1406 Configuration must not be yellow-marked when there are no changes
OD-1408 Display username of BYOD device
OD-1409 Show realm of username when creating/editing account
OD-1412 Harmonize file/directory permissions
OD-1414 Warn when default route is removed
OD-1416 Allow the configuration of the Filter-Id attribute
OD-1419 Align Edit/Delete Buttons
OD-1420 Assign existing groups when creating a customer

Task

OD-1359 Remove Alert when logged-out
OD-1370 Filter Placeholder and Counter must be the same everywhere
OD-1394 Make use of the NodeCreateDTO when creating or updating macman nodes
OD-1417 Small configuration design changes
OD-1421 Use $http_host instead of $host

Bug

OD-1238 Remove only the BOM and not every control character
OD-1265 Username shown without AD group in Reports, macman node details and macman config history
OD-1333 Make sure the full entity name is always somehow readable
OD-1369 NA Account CSV Import Wizard - Failed import modal not removed on file change
OD-1371 Switching back to onway director may not work
OD-1372 Legacy URIs are not redirected to the new onway director
OD-1374 onway director does not start if /usr/lib/sponsoring-portal/config is not writable
OD-1375 Wrong app name in footer
OD-1383 Permissions cannot be applied to new tags
OD-1385 Permission sync fails sometimes
OD-1387 NotFound-Alert appears even if a NotFound-Page is already displayed
OD-1388 Limit pagination requests that have a high request size
OD-1395 Macman index page blank after creating node
OD-1399 User object filter in the LDAP directory settings is not displayed
OD-1401 LDAP login fails because checking with the wrong account
OD-1403 Exception handler failure
OD-1410 DSI deregisters services even if the connection was never authenticated
OD-1423 Login can trigger an endless loading state of the application

8.11. onway director 5.0.0

Released: February 11, 2023

Story

OD-1112 Redesign of the web UI
OD-1009 Configure NGINX
OD-1305 Install/remove certificate bundles on the file system
OD-1325 Upgrade onway director to Ubuntu 22.04 Jammy Jellyfish
OD-1326 Remove support for legacy macman
OD-1341 Remove iPSK QR code configuration
OD-1344 Show error message in GUI
OD-1358 Migrate from Jetty to Tomcat

8.12. onway director 4.14.6

Released: January 19, 2023

Bug

OD-1312 Radius Log processing stops if parent account does not exist

8.13. onway director 4.14.5

Released: January 15, 2023

Bug

OD-1261 Wrong SeekIdentifier in NaAccount pagination
OD-1272 NaAccountSessionCleanupTask loads all deleted sessions into memory

8.14. onway director 4.14.4

Released: November 21, 2022

Bug

OD-1247 Network access account cannot be moved

8.15. onway director 4.14.3

Released: October 21, 2022

Bug

OD-1176 Unable to login with FTP over TLS

8.16. onway director 4.14.2

Released: October 20, 2022

Bug

OD-1174 Valid-to field for unlimited mpp user accounts is calculated incorrectly

8.17. onway director 4.14.1

Released: October 18, 2022

Story

OD-1166 Show account validity fields for mpp user accounts

8.18. onway director 4.14.0

Released: October 3, 2022

Bug

OD-1151 User directory name change is not reflected in SpAuthentication

Story

OD-1157 Show validFrom and validTo in Guest User Account table
OD-1138 Show additional information about an mpp user account
OD-1137 Retrieve lifetime of mpp account from mpp

Task

OD-1155 Add additional Guest User Account fields to SP Client API

8.19. onway director 4.13.2

Released: August 22, 2022

Bug

[OD-1111] - Sponsoring Portal stops most tasks if system agent is not available
[OD-1115] - Legacy CSV import task may cause deadlock of task service
[OD-1116] - The minimum length of the password is not respected when creating an input template
[OD-1117] - Race condition in DsiConnectionService when connection is deleted
[OD-1119] - Wrong connection ID is used in ConnectionCreateEvent
[OD-1122] - Deleted connection entries remain in TopicStateRepository
[OD-1128] - DsiExecutor insufficient queue capacity
[OD-1131] - Stream health collector on mpp remote client expects all streams to be running even if disabled in the config
[OD-1136] - LDAP group sync fails with read timed out

8.20. onway director 4.13.1

Released: July 18, 2022

Bug

[OD-1106] - DSI frames are dropped as the channel is not writable
[OD-1107] - Broken console event listener initialization
[OD-1108] - Unable to remove network access group permissions of multiple groups
[OD-1109] - Unable to add "Reveal (PSK)" and "Edit" permission on iPSK network access group
[OD-1110] - SP legacy NPE when Guest User input template is created

8.21. onway director 4.13.0

Released: July 8, 2022

Story

[OD-138] - Manage SSL certificates via web GUI
[OD-1034] - Allow '@' in username
[OD-1045] - Allow user accounts with a predefined password

Bug

[OD-1044] - MailConfiguration password is exposed in logfile
[OD-1046] - Kafka streams may crash
[OD-1047] - MailConfiguration Authentication password is not displayed

8.22. onway director 4.12.1

Released: May 30, 2022

Story

[OD-1031] - Fix system agent dependency

8.23. onway director 4.12.0

Released: May 30, 2022

Story

[OD-1027] - Integrate health service and desired collectors

8.24. onway director 4.11.0

Released: May 17, 2022

Story

[OD-1017] - NAS client metric cleanup
[OD-1025] - Support MAB failure VLAN configuration
[OD-1026] - Configure NAS identifier as regex

8.25. onway director 4.10.0

Released: May 10, 2022

Story

[OD-1008] - Notify the user about the consequences of an IP change on the host configuration page
[OD-1013] - Integrate health service and desired collectors
[OD-1015] - Collect health report exposed on DSI
[OD-1016] - Set default redirection to the onway director
[OD-1018] - Certificate download
[OD-1022] - Add support for Cisco interface templates

Bug

[OD-1019] - Handle error in HostConfigurationService.setHostConfiguration
[OD-1020] - macman remote client creates a new IPSK catch all account after every start even if a valid account already exists
[OD-1023] - Installation of sponsoring-portal-database may fail
[OD-1024] - Invalid default LDAP sync cron expression

8.26. onway director 4.9.0

Released: April 18, 2022

Story

[OD-931] - Transfer device configuration to bastard remote servers
[OD-947] - Install system agent with the onway director
[OD-948] - Make host parameters configurable in web console
[OD-949] - Apply host configuration
[OD-950] - Mail configuration
[OD-952] - Transfer devices to bastard remote servers
[OD-963] - Collect some metrics from NAS clients
[OD-976] - Show public key of bastard in subsection
[OD-977] - Consume and store failed RADIUS requests in local database
[OD-985] - Filter onway devices by assigned onway device configuration
[OD-1001] - Replace legacy lifecycle manager od
[OD-1002] - Configure local daemons via system agent
[OD-1007] - Support Secure FTP
[OD-1011] - Regenerate DSI certificate when hostname changes

Bug

[OD-996] - Updating an onway device with a new configuration or revision is not reflected in the journal
[OD-998] - Macman configuration is applied too often
[OD-1003] - Time zone does not match
[OD-1004] - Week does not start on Monday
[OD-1005] - Tags enforced by the network access group are not removed when moved

8.27. onway director 4.8.1

Released: February 24, 2022

Bug

[OD-992] - Consider user configuration permission for unsaved changes message
[OD-995] - ACL DB migration fails

8.28. onway director 4.8.0

Released: February 22, 2022

Story

[OD-770] - List logged in users
[OD-911] - Manage onway device configurations
[OD-924] - Generate bastard key
[OD-925] - Configure telemetry service
[OD-928] - Save onway device configuration as new revision
[OD-929] - Assign onway device configuration
[OD-930] - Assign onway device configuration revision
[OD-935] - Assign onway controller configuration to nodes
[OD-941] - Unique username and user account ID attribute for each LDAP user directory
[OD-943] - Show deleted onway devices
[OD-944] - Add a device type to a device configuration whose capabilities the device fulfills
[OD-945] - Add a device type to a device configuration whose capabilities the device does not fulfill
[OD-946] - Remove a device type from a device configuration
[OD-951] - Hide bastard main nav entries if bastard is not configured
[OD-957] - Improve session distribution report
[OD-960] - Do not synchronize LDAP directory at startup
[OD-974] - Show creation date of network access account in detail view
[OD-983] - Send "sessionRoute" requests only to mpps on which customer exists
[OD-986] - The assign permission should have the lower priority over the read permission
[OD-987] - Mark onway device configuration revision as default
[OD-989] - Assign a revision marked as default to all onway devices that do not yet have a revision

Bug

[OD-954] - Sidebar content disappears on page change
[OD-958] - A macman node can’t be trusted without configuration
[OD-961] - Periodic report is enabled after edit
[OD-962] - Pairing VLAN is empty after creation
[OD-969] - Show only allowed network access groups
[OD-971] - "Default valid for" option should not be visible in the My Device network access group
[OD-973] - Show "More" button only when needed
[OD-979] - Acl Sid of user account is never deleted
[OD-980] - Legacy cleanup tasks may fail
[OD-981] - onway device type sync may start before app up and running
[OD-982] - DsiGatewayHelper does not handle multicast responses correctly
[OD-984] - When removing a permission, only one group is removed
[OD-988] - Initialization errors of macman client and mpp client are not handled.
[OD-990] - Missing validation of the permissions in backend
[OD-991] - RADIUS log processor does not recover

Task

[OD-970] - Improve performance of database view "latest_onway_device_session"
[OD-972] - Macman-/Bastard-Node improvements
[OD-975] - Use new favicon

8.29. onway director 4.7.0

Released: January 3, 2022

Story

[OD-817] - Show online status of onway device
[OD-893] - Handle deletion of onway devices
[OD-894] - Adding meta information to onway devices
[OD-895] - Journal for onway devices
[OD-896] - Session history per onway device
[OD-899] - Filter onway devices by onway group and tags
[OD-900] - Show number of displayed onway devices
[OD-901] - Filter onway devices by online status
[OD-902] - Filter onway devices by last seen date
[OD-903] - Filter onway devices by type
[OD-906] - Mark onway device as offline
[OD-909] - Extend onway device description file
[OD-912] - onway device configuration permissions
[OD-919] - Configure LDAP sync interval as cron expression
[OD-920] - Disable LDAP synchronization
[OD-921] - SIM card management permissions
[OD-923] - Manage onway controller configurations
[OD-939] - Remove device id from session view
[OD-940] - Show FQDN of the onway controller the device is connected to
[OD-955] - Load PSK from database if possible

Task

[OD-937] - Polish onway device details sidebar

Bug

[OD-932] - Running sessions with the same MAC
[OD-933] - Idle time of non-terminated sessions does not work correctly
[OD-953] - iPSK device is not routed on mpp
[OD-956] - Wrong device is marked as online

8.30. onway director 4.6.0

Released: November 16, 2021

Story

[OD-710] - Delete unassigned revisions
[OD-769] - Mark synchronized user accounts as deleted
[OD-771] - Add meta information to user accounts
[OD-782] - Check the state of the user account during synchronization
[OD-815] - Remove "switch to the sponsoring portal" button
[OD-816] - Manage onway devices
[OD-820] - Allow users to log out directly from onway director
[OD-821] - Allow local user to change the password directly in onway director
[OD-881] - Remove non-printable characters
[OD-892] - Refine displayed navigation entries
[OD-897] - Group navigation entries by product
[OD-898] - Assign tags via onway groups
[OD-905] - Consume onway device status updates

Task

[OD-915] - Upgrade to PostgreSQL 14
[OD-916] - Upgrade to Java 17

Bug

[OD-890] - Missing HTTP session invalidation for deleted user accounts
[OD-891] - Tag permissions of existing accounts are not checked during CSV import

8.31. onway director 4.5.0

Released: October 19, 2021

Story

[OD-803] - Unify the appearance of the text-input buttons
[OD-837] - Ability to delete multiple network access accounts at once
[OD-846] - Import data from legacy macman
[OD-847] - Assign tags via network access groups
[OD-871] - Move section for configuring the network access group to the customer
[OD-873] - Configuration of "valid for" for a network access group
[OD-874] - Publish signed device-type.json on support.onway.ch
[OD-875] - Synchronization of the local device database with the published configuration
[OD-876] - Improve filtering of network access accounts by last seen date
[OD-877] - Filter network access accounts by their online status

Bug

[OD-870] - Missing session termination handler for deleted device NaAccounts
[OD-872] - Wrong permission to filter network access groups
[OD-889] - Duplicate ID variable in fetch revisions request

8.32. onway director 4.4.0

Released: September 15, 2021

Breaking Change in open director API

[OD-828] - NaAccount seek request has a further mandatory field: seekIdentifier.id used for pagination

Story

[OD-683] - Show number of displayed network access accounts
[OD-692] - Show version/build information in onway director
[OD-796] - Remove BYOD network access accounts when user loses permission
[OD-797] - Expiration policy for "My Devices" accounts
[OD-813] - Establish a DSI connection to configured onway controller nodes
[OD-814] - Introduce device groups
[OD-831] - Colorize, format and copy the PSK of the iPSK QR code
[OD-833] - Show only deleted network access accounts
[OD-834] - Filter network access accounts by last seen date
[OD-835] - Show only configured features
[OD-836] - Change CSV import column prefix
[OD-843] - Show realm in username field
[OD-844] - Show navigation entry "iPSK QR code" under "macman settings"
[OD-845] - Configure the rotation time of the iPSK QR code as a cron expression

Bug

[OD-762] - Add explicit toggle button to expand and collapse the details table
[OD-808] - Assign tags to iPSK QR code-registered accounts regardless of tag permission
[OD-818] - Mandatory custom text field validation must not depend on provided values
[OD-819] - Prevent remote client DBs from being migrated before main DB
[OD-827] - Unpaired iPSK device cannot be added manually
[OD-828] - Unpredictable NaAccount export/stream order when deletedNaAccountsEnabled
[OD-832] - Update default CSV separator when language is changed
[OD-848] - Language files are not updated on new releases
[OD-849] - Custom fields remain visible when network access group is changed
[OD-854] - Date picker view is broken
[OD-855] - Link to "Switch to the onway director" sometimes navigates to administration view
[OD-856] - Long values in the CardLabel(Block)Value components may cause overflow issues
[OD-858] - Field errors may appear multiple times
[OD-859] - Network access group ID may be rendered

8.33. onway director 4.3.0

Released: July 13, 2021

Story

[OD-773] - Import network access accounts via CSV
[OD-786] - Allow the validity of a BYOD user to be changed subsequently
[OD-794] - Move customer permission view
[OD-795] - Make login redirect page configurable

Bug

[OD-807] - NaAccount filter validation errors are not shown on input field
[OD-809] - Auto refresh button should not be visible if My Device is not yet configured

8.34. onway director 4.2.0

Released: June 25, 2021

Bug

[OD-754] - Terminate sessions of deleted NA accounts
[OD-781] - Avoid multiple BYOD network access groups per customer
[OD-783] - Main nav and home screen entries should be the same
[OD-785] - Missing mmrc_settings after installation/migration
[OD-804] - Clean up unknown network access accounts

Story

[OD-702] - Macman session history cleanup
[OD-703] - Show NAG hint below the network access group name
[OD-704] - Show NAG hint in network access account detail view
[OD-708] - Show BYOD credentials and devices
[OD-709] - Start session on the mpp after the BYOD device has been approved
[OD-711] - Delete BYOD account when user is deleted
[OD-720] - Redesign/Refactor pagination
[OD-721] - Mark expired network access accounts as deleted
[OD-722] - Maximum idle time of running sessions
[OD-755] - NA account input template configuration
[OD-756] - NA account view must include the custom fields
[OD-757] - NA account journal must include the custom fields
[OD-767] - Button to copy PSK
[OD-772] - Export network access accounts as CSV
[OD-779] - Extend iPSK PSK length configuration
[OD-780] - Document public network access account API

8.35. onway director 4.1.0

Released: May 18, 2021

Story

[OD-620] - Show status of network access accounts
[OD-677] - Adding meta information to network access accounts
[OD-678] - Show running and past sessions of a network access account
[OD-679] - Handle deletion of network access accounts
[OD-680] - View deleted network access accounts in the web console
[OD-684] - Allow download of report data
[OD-705] - Add BYOD NAG configuration in NAG view
[OD-706] - Configure BYOD
[OD-707] - Introduce BYOD network access groups
[OD-723] - Move RADIUS log processing from macman remote server to macman remote client
[OD-724] - Show mac address in session log
[OD-727] - Introduce stable authentication ID
[OD-728] - Expand the user information in the journal
[OD-729] - Make first, given and display name fields optional
[OD-731] - Add additional fields to user account
[OD-737] - Add pairing VLAN to an iPSK NaGroup

Bug

[OD-693] - Unknown service names
[OD-694] - Message source falls back to system locale
[OD-712] - Merging NA accounts fails on 10th account
[OD-713] - Expired sessions are not cleaned up
[OD-730] - Na child accounts must always be in the same nag as their parent
[OD-732] - Cannot create new Guest User if language is French
[OD-735] - NaGroup realm null check
[OD-736] - Guest Users can not be created via API if validForMinutes is not visible
[OD-738] - OD DslContext does not have all schemas in search path.
[OD-753] - Reveal password in the journal of the PEAP account
[OD-763] - Make NA account state transition unpaired to paired visible
[OD-764] - Mark children as deleted when their parent is marked as deleted
[OD-766] - Unable to load more MAB and iPSK devices
[OD-777] - Use the same icon to expand/collapse in all places
[OD-778] - Make uploaded AUPs accessible

8.36. onway director 4.0.1

Released: March 10, 2021

Story

[OD-681] - Set valid from after first login

Bug

[OD-700] - Fix problems with dependencies during ISO installation

8.37. onway director 4.0.0

Released: March 7, 2021

Epic

[OD-641] - RADIUS PEAP Authentication
[OD-642] - RADIUS iPSK Authentication
[OD-643] - RADIUS MAB Authentication
[OD-648] - iPSK onboarding via QR code

Story

[OD-585] - Establish a DSI connection to configured macman nodes
[OD-596] - Introduce labels for customers
[OD-597] - Introduce macman radius configuration
[OD-598] - Assign macman configuration to macman nodes
[OD-605] - NAS Clients
[OD-606] - Introduce PEAP Network Access Groups (NAG)
[OD-607] - Certificates
[OD-608] - Assign certificate to macman configuration
[OD-613] - Assign macman configuration when creating/editing node
[OD-614] - Introduce Network Access Group Views
[OD-615] - PEAP NAG permissions
[OD-616] - Introduce Macman User (PEAP User)
[OD-617] - Filter macman user by NAG and tags
[OD-621] - Add called station id type to the NAS client configuration
[OD-622] - Add NAS type to the NAS client configuration
[OD-624] - Publish PEAP NAG to a Kafka topic
[OD-629] - Add iPSK NAG configuration in NAG view
[OD-630] - Introduce iPSK devices
[OD-635] - Introduce Network Access Groups (NAG)
[OD-636] - Publish NAGs to Kafka
[OD-637] - Introduce NAG account
[OD-638] - Publish NAG accounts to Kafka
[OD-639] - Ignore empty lines or comment lines
[OD-640] - Introduce iPSK network access groups
[OD-645] - Introduce MAB network access groups
[OD-646] - Introduce MAB accounts
[OD-647] - Add MAB NAG configuration in NAG view
[OD-649] - Configure iPSK QR code
[OD-650] - Link iPSK QR code configuration to a NAS identifier
[OD-651] - iPSK QR code customer configuration
[OD-652] - Publish new PSK for each QR code configuration
[OD-654] - Add iPSK device via QR code
[OD-655] - Show customer beside NAG
[OD-656] - Show comment on NA account pages
[OD-659] - Start session on the MPP
[OD-664] - Stream NA log to remote client
[OD-665] - Make use of password masker
[OD-666] - Save unknown NA accounts
[OD-669] - Ubuntu 20.04 upgrade
[OD-670] - Show user principal name for PEAP user
[OD-672] - Do not stream unpaired NA accounts
[OD-673] - Give the welcome screen some love

1	Remove previously used Postgres packages
2	Remove packages that were automatically installed to satisfy dependencies for other packages and are now no longer needed

1	Go to the source folder
2	Change the entry `client_max_body_size` from `20M` to `80M`
3	Restart NGINX
